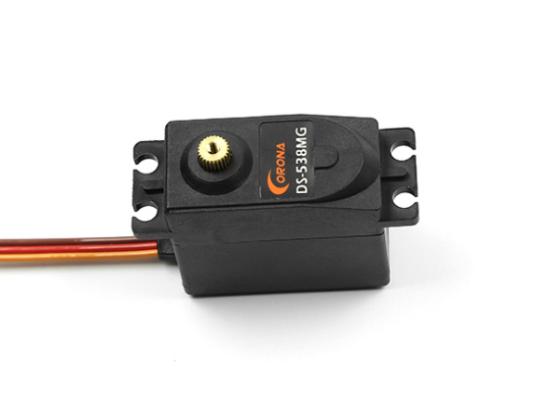

SERVO CORONA DS-538MG - STANDARD - 7.0KG / 0.13SEC. / 6V
Código: 10329
Precio lista: 23.500,00
Producto en stock
Item NO? DS538MG

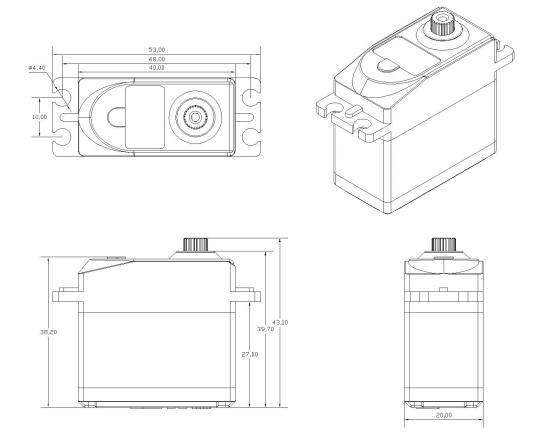

Size? 20x40x38.5mm(0.78"x1.57"x1.51")
Weight 58g
Operating Voltage 4.8V / 6.0V
Operating Current 300mA / 400mA
Operating Speed 0.14sec.60º/ 0.13sec.60º
Stall Torque 6.5kg.cm / 7kg.cm
Dead Band ≤3uSec
Operating Travel 40º/one side pulse traveling 400us
Potentiometer 5 slider/Indirect Drive
Ball bearing MR106
Gear Metal
Connector wire 215mm
Operating Temperature Range -20 ? to +60?
