SERVO KINGMAX CLS0309WV micro wing - 4.5KG / 0.07sec / 8.6gr

Código: 10362

Precio lista: 61.200,00

Producto en stock

FEATURE:

-- High performance,micro digital wing servo

-- High precision matal gears(copper+titanium)

-- High quality coreless motor

-- Full CNC aluminium hulls and structure

-- 8mm ultra-thin thickness

-- Dual ball bearings

SPECIFICATIONS:

Operating Speed(3.5V):0.16sec/60degrees

Operating Speed(5.0V):0.10sec/60degrees

Operating Speed(6.0V):0.08sec/60degrees

Operating Speed(7.4V):0.07sec/60degrees

Operating Speed(8.4V):0.06sec/60degrees

Stall Torque(3.5V):2.0kg.cm(27.78oz/in)

Stall Torque(5.0V):3.0kg.cm(41.67oz/in)

Stall Torque(6.0V):4.0kg.cm(55.56oz/in)

Stall Torque(7.4V):4.5kg.cm(62.50oz/in)

Stall Torque(8.4V):5.0kg.cm(69.45oz/in)

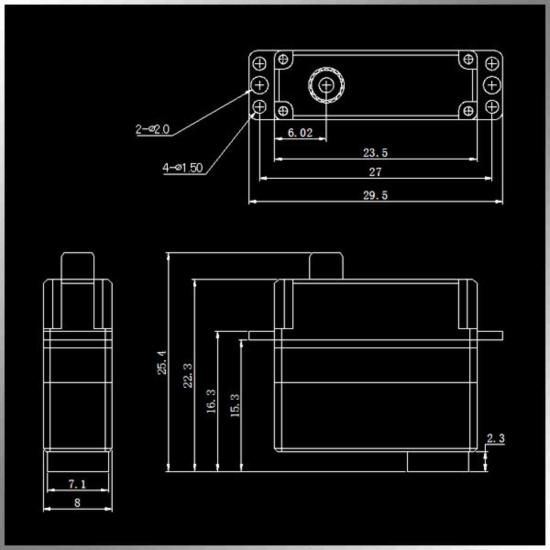

Size:23.5x8x20mm(0.92x0.31x0.78in)

Weight:8.6g(0.30oz)

Connector Wire Length: 120mm(4.68in)
